A project at Franklin Delano Roosevelt State Park aims to redesign the 6.2 acre parking lot in order to greater serve the goals of environmental sustainability and stewardship. The project will rehabilitate the lot’s surface, improve the efficiency of the parking layout and improve drainage and storm water runoff quality. The new parking lot will feature native trees and vegetation to visually soften the hard surface of the parking lot. Ultimately, the redesign will create a more welcoming and pleasant entrance experience to patrons visiting the popular pool and provide important benefits to the park’s wetland and lake by reducing the amount of nutrients (e.g. phosphorus) and typical parking lot pollutants that are currently flowing into these resources untreated.

This is a joint project between NYS OPRHP and the NY Department of Transportation (DOT). DOT has been tasked with reducing phosphorus loading from storm water runoff from public highways and other impervious surfaces within the Croton watershed. They identified the large pool parking lot at FDR as a project that would help them meet their phosphorus reduction goals. As this lot is in need of rehabilitation, DOT’s assistance with its upgrade will result in a net benefit for both agencies. DOT will provide design and construction management funding and assistance. OPRHP will fund the construction contract.

 The Environmental Impact of Parking Lots

Parking lots can be bad for the environment for many reasons. More pavement means less green space, thereby reducing the number of trees and plants that serve as natural “air cleaners” by absorbing carbon dioxide in the air and releasing oxygen. It also means less open soil that can collect rainwater, which helps to replenish natural aquifers. Impervious surfaces, like asphalt, don’t allow rain to percolate into the ground; instead they channel rainwater to a storm drain. Stormwater runoff can be highly polluted with oil, grease, coolant, and other fluids which leak out of cars and collect on pavement until rain washes it into our lakes and streams, negatively impacting our health as well as the habitat and living conditions of fish and other aquatic life.

Another negative effect of parking lots is that they raise local temperatures through a process known as the “heat island” effect. Asphalt and concrete absorb and retain heat from the sun’s rays more than the surrounding ground. This in turn raises surrounding temperatures a few degrees.

The Project at FDR State Park

FDR State Park is located along the Taconic State Parkway, approximately 40 miles north of New York City. The park offers day use recreational facilities including picnicking, trails, fishing and boating and areas for field games. One of the central features of the park is a large outdoor pool that can accommodate up to 3,500 bathers at a time. The park is popular with local residents for walking, hosts many events throughout the year and is also used for winter activities.

To accommodate all these visitors, FDR State Park also has a very large parking area. The lot is 6.2 acres in size and primarily services the pool complex during the summer. It is also used year-round for access to nearby trails, picnic areas, and events. Storm water drainage from the existing lot is directed to storm drains that flow to a nearby wetland and then into Mohansic Lake, a large lake within the park.

The primary elements of the proposed design include:

• Parking Lot – The existing asphalt surface will be removed and replaced. The removed asphalt will be milled and reused or recycled. In addition, approximately 15,000 square feet of asphalt will be removed from an adjacent service road entrance and replaced with grass.

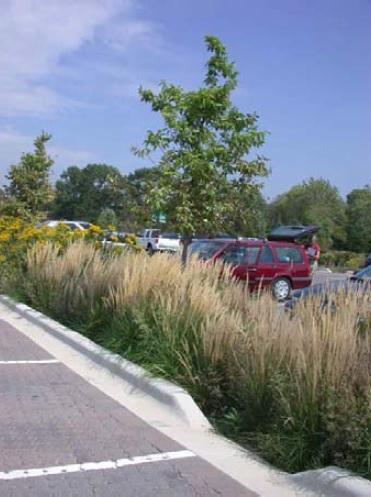

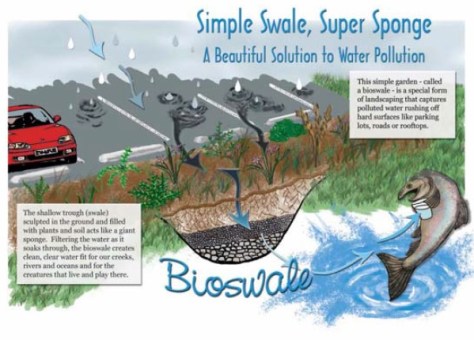

•  Storm water treatment – The proposed plan includes the construction of new bioswales throughout the lot which will consist of a combination of soil, cobbles and native vegetation. Storm water drainage will flow into these areas before entering into the existing storm water drainage system. These bioswales will allow for biological filtration and treatment, breaking down many of the nutrients and pollutants found in typical storm water runoff. Native trees, shrubs, and ornamental grass species will be planted to reduce the lot’s heat island effect, improve aesthetics, and provide shade and wind breaks. Below is a photo of a typical bioswale that is similar to what will be installed.
